Ferrite Magnet 2.5kHz 99dB 15 Inch Woofer Speaker

Product Categories
Guangzhou Huiyin Audio Co., Ltd.
Contact Now

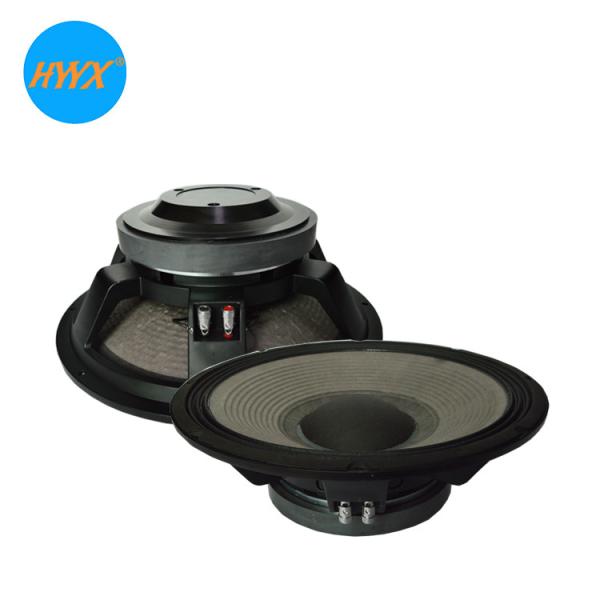

Ferrite Magnet 2.5kHz 99dB 15 Inch Woofer Speaker

Place of Origin : Guangdong, China

Brand Name : OEM

Model Number : HYW-15100-023

Certification : CE

Supply Ability : 10000 Piece/Pieces per Month

Packaging Details : 1. Inside + outside strong double boxes 2. Customized

MOQ : 2 Piece/Pieces

Price : $40.00 - $60.00 / Piece

Warranty : 3months-1year

Customized : yes

Dimension : 15

Power Supply Mode : other

Storage : NO

SNR : NO

Output Power : NO

Connection Type : other

Shell Material : metal

Format : NO

The body material : metal

radio function : no

Product name : Woofer speaker

Nominal diameter : 15 inch

Impedance : 8 ohm

Rated power handing : 500W

Sensitivity : 99dB

Magnet material : Ferrite

Magnet diameter : 220x25mm

Voice coil material : Copper

Voice coil diameter : 100mm

Frequency Range (Hz) : 30hz-2.5khz

Port : Huangpu port, Nansha

Contact Now

15" Professional woofer speaker PA midbass speaker driver pro audio speaker

Product Description

15" High power Professional woofer speaker
30Hz-2.5kHz Frequency response
4"/100mm Copper voice coil
500W RMS, 1000 Watt continuous program power handling
Mid or Long-throwing application for indoor or outdoor usage

Product Description
Specification
Nominal diameter
380/15
mm/inch
Nominal impedance
8
ohm
Min impedance
5.2
ohm
Frequency response
30-2.5k
Hz
Magnet size
220x25
mm
Magnet material
Ferrite

Sensitivity (1w/1m)
99
dB
Nominal power handling
500
Watts
Continuous power handling
1000
Watts
Voice coil diameter
100/4"
mm/ inch
Winding material
Copper

Cone material
Paper

Surround material
Cloth

T/S Parameter
Fs
38
Hz
Re
5.2
Ω
Qes
0.46

Qts
0.45

Qms
13.12

Vas
114.6
L
Rms
2.7
kg/s
Cms
0.11
mm/N
Mms
132.3
gr
BI
19.9
N/A
Rp
119.6
Ω
Lp
44.6
mH
Cp
618.0
uF
Le
1.2
mH
Xmax
8.5
mm
Mounting information
Overall diameter
388/15.27
mm/inch
Bolt Circle diameter
370/14.56
mm/inch
Baffle Cutout diameter
358/14.09
mm/inch
Mounting Depth
140/5.5
mm/inch
Flange thickness
0.8/0.3
mm/inch
Shipping information
Net weight
11.6
KG
Shipping weight
12.5
KG
Shipping box
400x400x160
mm



Ferrite Magnet 2.5kHz 99dB 15 Inch Woofer Speaker
