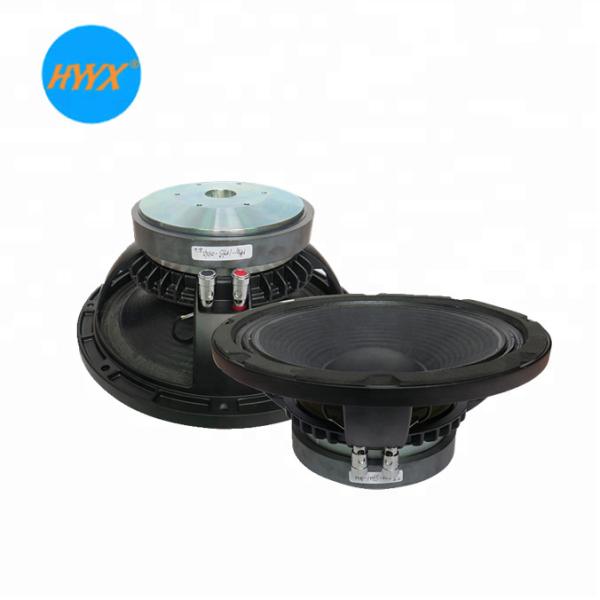

Product Description
- Professional woofer speakers from 10"-18" optional
- 600W continuous program power capacity, 300W RMS power handling
- 98dB sensitivity 1w/1m
- 50hz-4khz Frequency response
- 2.5" High temperature CCAW voice coil wire and fiberglass former
- Ideal for compact 2-way speaker system.
| Specification |
| Nominal diameter | 260/10 | mm/inch |
| Nominal impedance | 8 | ohm |
| Min impedance LF | 5.2 | ohm |
| Frequency response | 50-4k | Hz |
| Magnet size | 145x20 | mm |
| Magnet material | Ferrite | |
| Sensitivity (1w/1m) | 98 | dB |
| Nominal power handling | 300 | Watts |
| Continuous power handling | 600 | Watts |
| Voice coil diameter | 65/2.5 | mm/ inch |
| Winding material | CCAW | |
| Cone material | Paper | |
| Surround material | Cloth | |
| T/S Parameter |
| Fs | 61.2 | Hz |
| Re | 5.2 | Ω |
| Qes | 0.55 | |
| Qts | 0.53 | |
| Qms | 12.32 | |
| Vas | 36.2 | L |
| Rms | 1.0 | kg/s |
| Cms | 0.20 | mm/N |
| Mms | 33.2 | gr |
| BI | 11.0 | N/A |
| Rp | 60.5 | Ω |
| Lp | 33.9 | mH |
| Cp | 498.6 | uF |
| Le | 0.7 | mH |
| Xmax (one-way) | 3.5 | mm |
