70Hz Disco Sound System Single 10'' Line Array Loudspeaker

Product Categories
Guangzhou Huiyin Audio Co., Ltd.
Contact Now

70Hz Disco Sound System Single 10'' Line Array Loudspeaker

Brand Name : Trumbosound

Model Number : LA10

Place of Origin : Guangdong, China

MOQ : 2-19 Pieces

Price : $265.00

Power Source : DC

Battery : No

Number of Loudspeaker Enclosure : 1

Audio Crossover : TWO-WAY

Woofer Size/Full-Range Size : 10"

Set Type : Speaker

Material : wood

Waterproof : yes

PMPO : 600W

Support Memory Card : No

Speaker Type : Combination

Output Power : 300W

Remote Control : No

Cabinet Material : wood

Frequency Range : 70Hz-20KHz

Display Screen : No

Intelligent Personal Assistant : None

Voice Control : No

Built-in Microphone : No

Tweeter Size : 1.5"

Type : Passive

Use : HOME THEATRE, Portable Audio Player, Stage

Channels : 2 (2.0)

Product name : 10 inch Line array speaker

Frequency response : 70hz-18khz

AES power handling : 300W

Sensitivity : 103dB

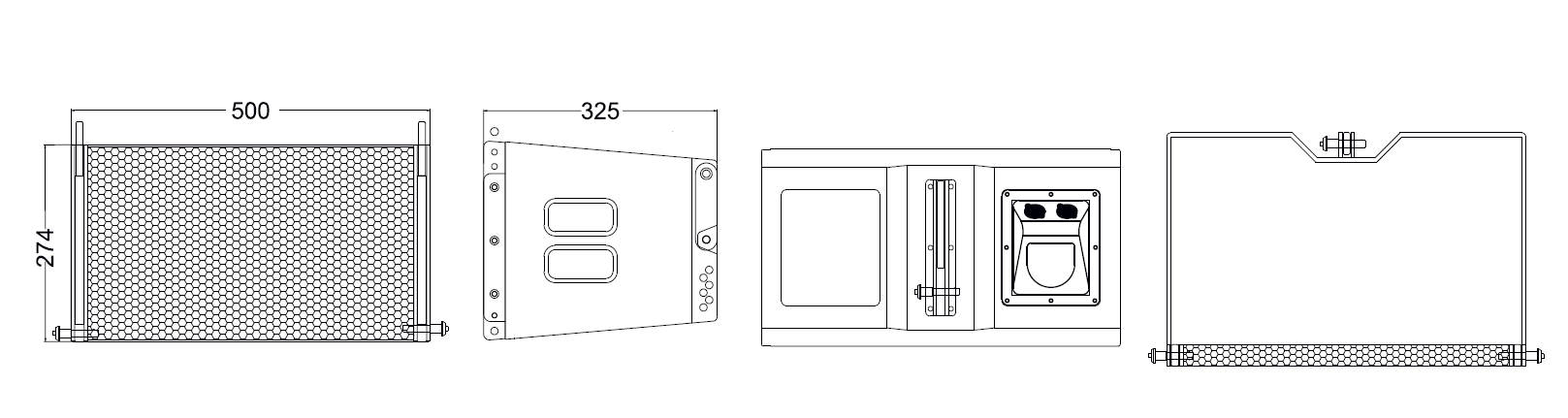

Dimension : 500x325x274mm

Net weight : 17KG

Gross weight : 20KG

Subwoofer size : 18 inch subwoofer

Monitor size : 15 inch coaxial speaker

Selling Units : Single item

Single package size  : 51.5X34X29 cm

Single gross weight : 20.000 kg

Package Type : 1, Foam + strong box 2, Package size : 51.5x34x29 cm ( one pcs) Gross weight : 20KG (one pcs)

Contact Now

SIngle 10 inch line array speaker loudspeaker 10 inch with neodymium speaker driver LA10
Product Description
70Hz Disco Sound System Single 10'' Line Array Loudspeaker
70Hz Disco Sound System Single 10'' Line Array Loudspeaker
70Hz Disco Sound System Single 10'' Line Array Loudspeaker
70Hz Disco Sound System Single 10'' Line Array Loudspeaker
Feature :
1, LA10 is compact line array speaker
2, With 1 pcs of neodymium HF driver and 1 pcs of neodymium woofer speaker for top end market
3, 70hz-18khz frequency response
4, SPL: LF: 124/130 dB, HF : 122/128dB
5, 300W RMS power handling, 600W max power handling

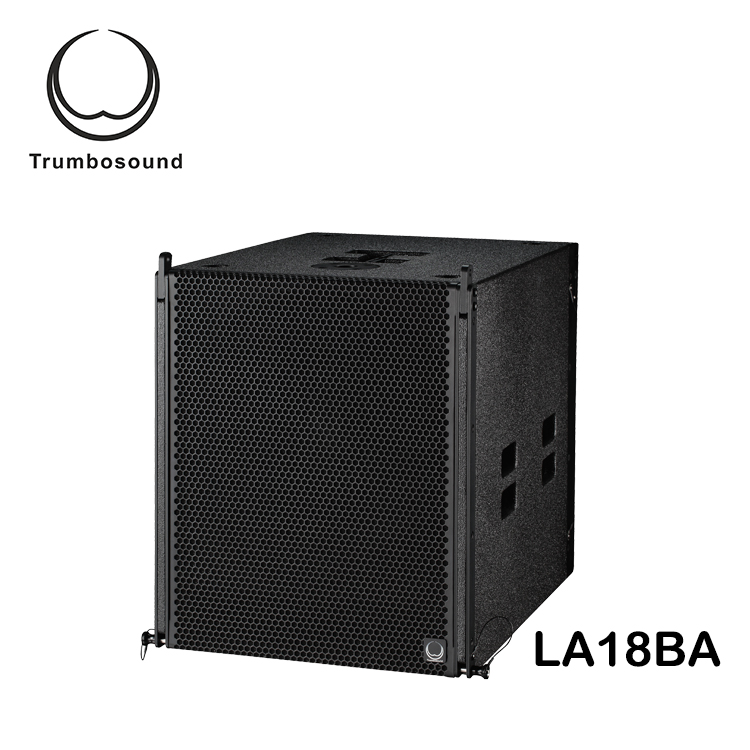

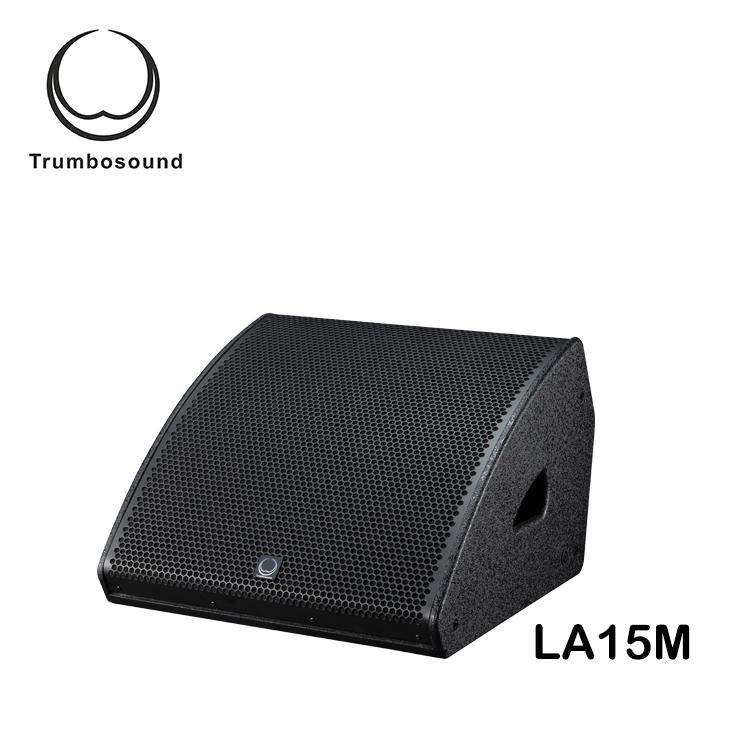

6, Working together with active 18 inch subwoofer(LA18BA) and15 inch monitor coaxial speaker(LA15M) to get the perfect sound syatem.

Model No.
LA10
LA18BA
LA15M
Size
10 inch
18 inch
15 inch
Product name
Single 10 inch line array speaker
Active single 18 inch subwoofer
15 inch monitor coaxial speaker
Impedance (Ω)
8
8
8
Frequency response
70hz-18khz
25hz-300hz(-10dB)
45hz-20khz(-10dB)
Speaker driver
LF: 1x10 inch with 3 inch voice coil, neo magnet and carbon cone                              HF : 1x1.5 inch HF driver with neodymium magnet and 3 inch voice coil
1x18 inch subwoofer with 4 inch voice coil and neodymium magnet
1x15 inch coaxial speakers with neodymium magnet and carbon cone .
AES power handling
HF: 80W , LF: 300W
800W
500W
Sensitivity (1w/1m)
HF: 103dB,  LF: 100dB
100dB
100dB
Box material
Wood
Wood
Wood
SPL
LF:122dB(Con)/128dB(Peak) HF: 124dB(Con)/130dB(Peak)
128dB(Con)/134dB(Peak)
127dB(Con)/133dB(Peak)
Nominal coverage angle
100°x10°

90°x60°
Dimension
500x325x274mm
500x673x584mm
540x565x374mm
Net weight
17 kg
50 kg
19.7 kg
Gross weight
19 kg
53 kg
23 kg
Inside amplifier module power

1x1000W/8Ω                   2x500W/8Ω

DSP

2 in 3 out digital processor

Power

AC 110-250V
