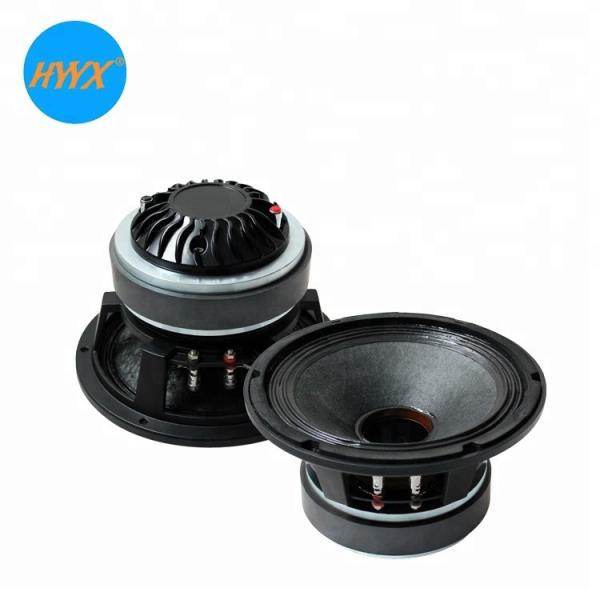

Paper Cone 96dB 18KHz 250W 8 Inch Coaxial Car Speakers

  • 1
  • 2
  • 3

Place of Origin : Guangdong, China

Brand Name : HYYX

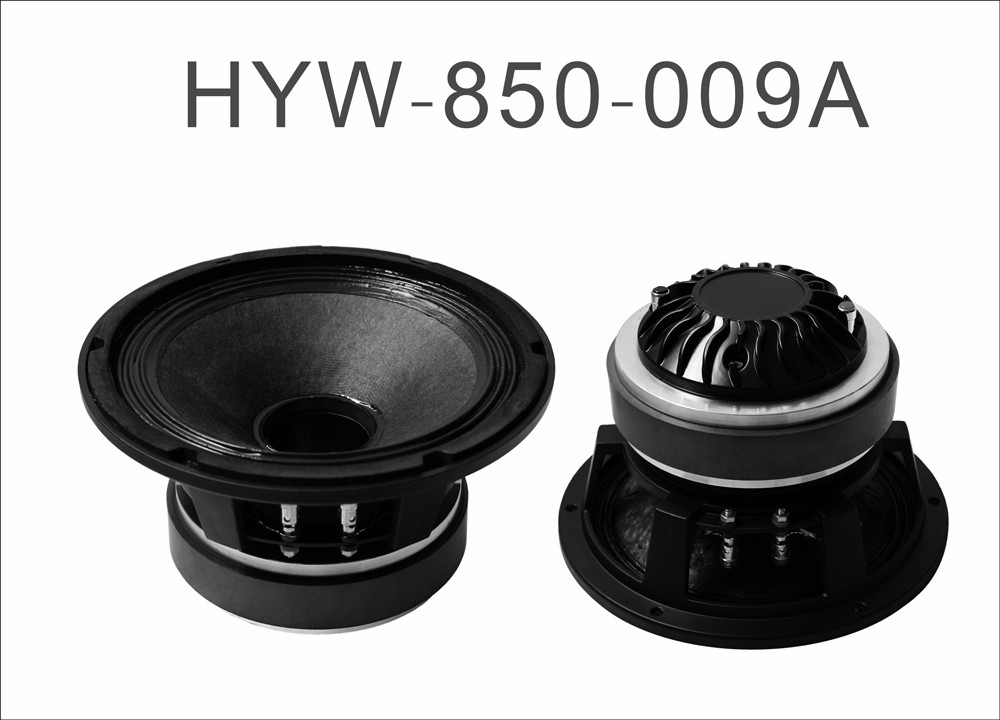

Model Number : HYW-850-009A

Supply Ability : 50000 Piece/Pieces per Week

Packaging Details : 1. Inside + outside strong double boxes 2. Customized

MOQ : 2 Piece/Pieces

Price : $30.00 - $50.00 / Piece

Type : Coaxial speaker

Frequency Response : 60Hz-18KHz

Sensitivity : 96dB

Nominal Impedance : 8 Ohm

Size : 6.5/10/12/15 Inch Optional

Rated Power : 250W

Max power handling : 500W

Basket material : Die-casting aluminium

Cone material : Paper

Surround material : Cloth

Port : Huangpu, Nansha

Contact Now

8 inch speaker pro audio speaker 8" pa coaxial speaker

Product Description


Features :



- 500W continuous program power capacity
- 95dB sensitivity 1w/1m
- 60hz-18khz frequency response
- Single magnet design
- Titanium / Polyester diaphragm for HF driver
- 25mm(1") HF throat size
- 2" Voice coil for woofer  + 1.7" voice coil for HF driver
- Ideal for surround and monitor loudspeakers

Speccification :
Specification
Nominal diameter
210/8
mm/inch
Nominal impedance
8
ohm
Min impedance LF
5.2
ohm
Min impedance HF
6
ohm
Frequency response
60-18k
Hz
Dispersion angle
70
°
Magnet size
145x25
mm
Magnet material
Ferrite

Specification LF
Sensitivity (1w/1m)
95
dB
Nominal power handling
250
Watts
Continuous power handling
500
Watts
Voice coil diameter
50/2 "
mm/ inch
Winding material
Copper

Cone material
Paper

Surround material
Cloth

Specification HF
Throat size
25/1
mm/inch
Sensitivity (1w/1m)
107
dB
Nominal power handling
50
Watts
Continuous power handling
100
Watts
Voice coil diameter
44/1.7
mm/inch
Diaphragm
Titanium / Polyester

T/S Parameter
Fs
65.4
Hz
Re
5.2
Ω
Qes
0.51

Qts
0.49

Qms
13.74

Vas
19.8
L
Rms
0.6
kg/s
Cms
0.31
mm/N
Mms
19.2
gr
BI
9.0
N/A
Rp
85.9
Ω
Lp
27.8
mH
Cp
456.3
uF
Le
0.5
mH
Xmax
6.5
mm
Mounting information
Overall diameter
211/8.3
mm/inch
Bolt Circle diameter
197/7.8
mm/inch
Baffle Cutout diameter
187/7.4
mm/inch
Depth
127/5
mm/inch
Flange thickness
8/0.315
mm/inch
Shipping information
Net weight
4.1
KG
Shipping weight
4.7
KG
Shipping box
250x250x165
mm
