Ferrite Magnet 4KHz 8 Inch Midrange Speakers PA Sound Equipment

Guangzhou Huiyin Audio Co., Ltd.
Contact Now

Ferrite Magnet 4KHz 8 Inch Midrange Speakers PA Sound Equipment

  • 1
  • 2

Place of Origin : Guangdong, China

Brand Name : HYYX

Model Number : HYW-850-054

Certification : ce

Supply Ability : 10000 Piece/Pieces per Week

Packaging Details : 1. Inside + outside strong double boxes 2. Customized package

MOQ : 2 Piece/Pieces

Price : $15.00 - $20.00 / Piece

Warranty : 3months-1year

Customized : yes

Dimension : 8 inch

Power Supply Mode : other

Storage : NO

SNR : NO

Output Power : NO

Connection Type : other

Shell Material : metal

Format : NO

The body material : metal

radio function : no

Type : 8 inch midrange speaker

Sensitivity : 95dB

Frequency Response : 90Hz-4KHz

Nominal Impedance : 8 ohm / 4ohm

Rated Power : 250W

Basket material : Die-casting aluminium

Cone material : Paper

Voice coil diameter : 50mm/2 inch

Voice coil material : Copper

Surround material : Cloth

Port : Huangpu, Nansha

Contact Now

8 Inch Midrange Speakers Car Audio Pro Audio PA Sound Equipment

Product Description

This 8 inch midrange Speakers offers outstanding efficiency , high sensitivity 95dB. Its very high power handling(250W RMS ) and Xmax capabilities(6mm) make it suitable for any pro audio speaker enclosure.

Specification


Features :



-  8 inch midrange speakers for professional audio
-  95dB sensitivity 1W/1M
-  250W RMS , 500W Max power handling

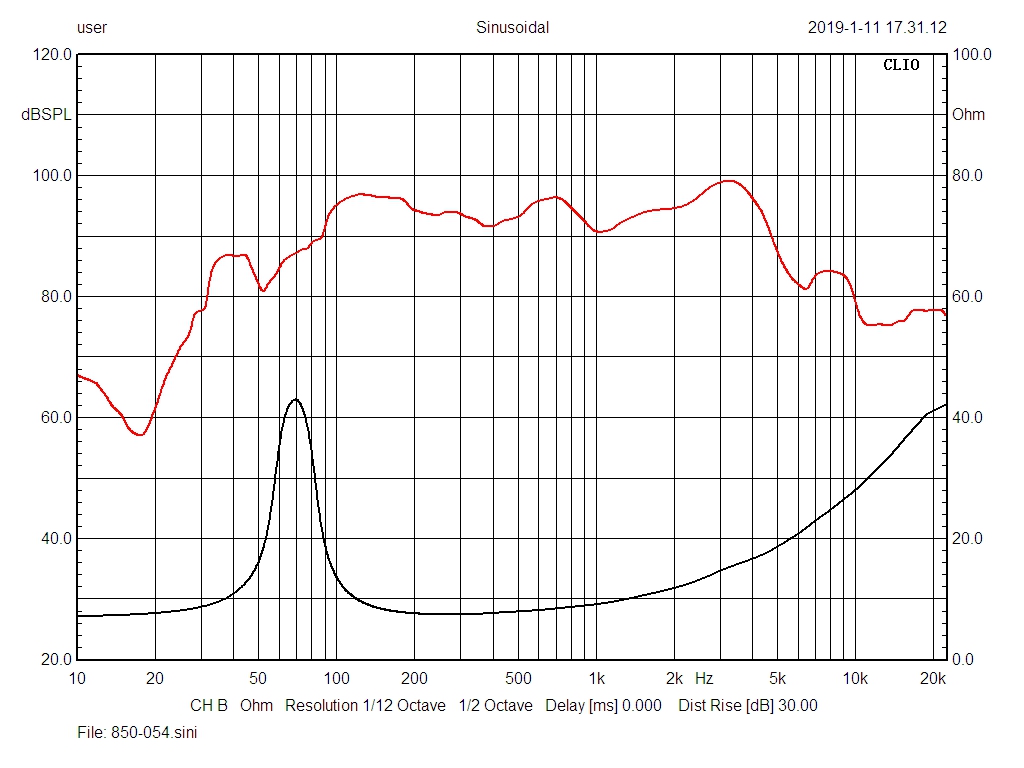

-  90hz-4khz Frequency response
-  Ferrite magnet
-  2 inch/ 50mm copper voice coil

Specification :

Specification


Nominal diameter
200/8
mm/inch
Nominal impedance
8/4
ohm
Min impedance
5.2/3.6
ohm
Frequency response
90-4k
Hz
Magnet material
Ferrite

Sensitivity (1w/1m)
95
dB
RMS power handling
250
Watts
Continuous power handling
500
Watts
Voice coil diameter
50/2
mm/ inch
Winding material
Copper

Cone material
Paper

Surround material
Cloth

T/S Parameter


Fs
81
Hz
Re
5.2
Ω
Qes
0.93

Qts
0.86

Qms
11

Vas
12.1
L
Rms
1.0
kg/s
Cms
0.18
mm/N
Mms
21.5
gr
BI
8.3
N/A
Rp
39.2
Ω
Lp
13.8
mH
Cp
603.5
uF
Le
0.5
mH
Xmax
6
mm
Mounting information


Overall diameter
210/8.26
mm/inch
Bolt Circle diameter
197/7.75
mm/inch
Baffle Cutout diameter
186/7.3
mm/inch
Depth
92/3.6
mm/inch
Flange thickness
8/0.31
mm/inch
Shipping information


Net weight
3KG
KG
Shipping weight
4KG
KG
Shipping box
240x240x130
mm



Ferrite Magnet 4KHz 8 Inch Midrange Speakers PA Sound Equipment

Our Company
Ferrite Magnet 4KHz 8 Inch Midrange Speakers PA Sound Equipment



FAQ



1.Q: Are you a manufacturer?

A: Yes, We are manufacturer who focus on high end speakers for car audio and professional audio.

2.Q: What's your products range?

A: Subwoofer, coaxial speaker, midranges, component speakers, tweeters and amplifiers .

3.Q: Can I get some samples?

A: Yes, we could provide samples and ship by DHL, EMS, FedEx or by sea .

4.Q: What's the payment method ?

A: T/T, Western Union and PayPal for samples payment.

5.Q: Can you print our logo on speakers and packing boxes?

A: Yes, we would like to do it for you.

6. Could you build speakers based on customer's design?

A: Yes , we could.



Company Profile

Since our establishment in 2009, we have been committed to manufacturing high-quality audio products, including professional audio speakers, car audio speakers, speakers with cabinets and power amplifiers. Since then, Huiyin Audio Co., Ltd. has had a complete high-quality supply chain, an excellent management team, and the ability to provide our customers with good service and high-quality products at a good price! Instead, the company introduced a series of advanced equipment such as automated production lines, high-efficiency magnetizers, impact testing machines, and temperature testing machines. To maximize, we obtained CE certification in 2012. The enterprise will be gradually developed in 2017.

We are willing to customize the speakers and amplifiers required by customers to suit their market. OEM and ODM orders are welcome.
Committed to strict quality control and thoughtful customer service, our experienced staff are always available to discuss your requirements and ensure complete customer satisfaction. When we cooperate with well-known Chinese brands, our products are also exported to customers in North America, South America, Europe, Asia, Africa and Africa and Oceania and other countries and regions. Whether it is selecting the current product from our catalog or seeking the help of an engineer to manufacture other ideal speaker models, please contact our customer service center or send an email to us. We want to establish a long-term business relationship with you.
